ISO6330 wascator Washing Shrinkage Tester

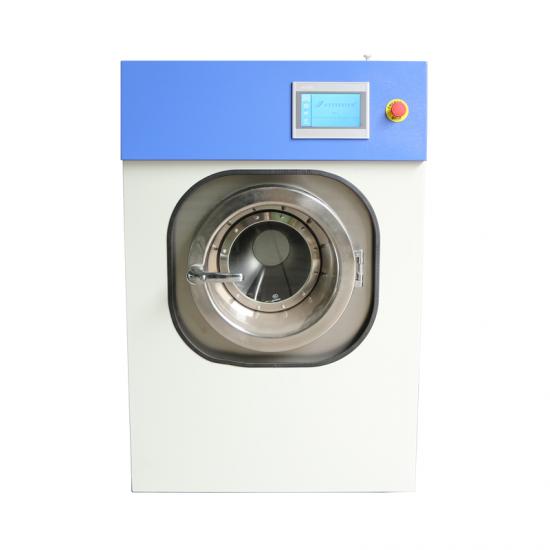

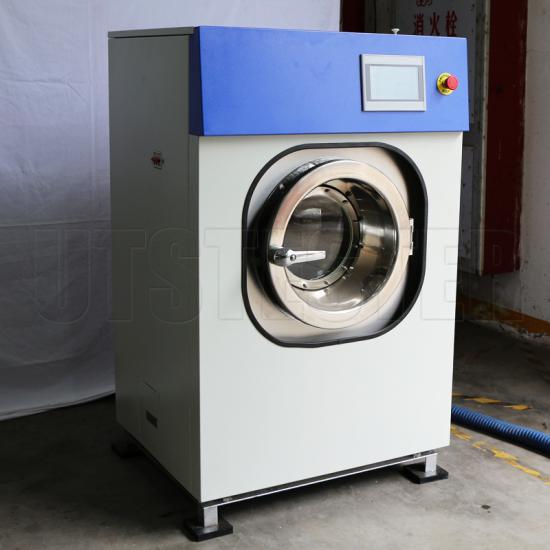

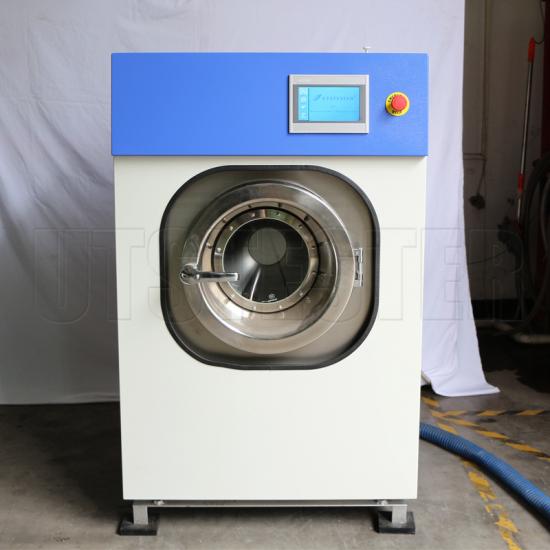

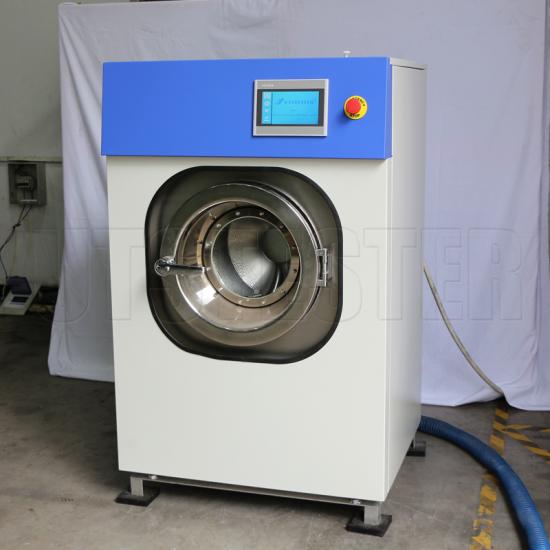

Wascator Automatic Washing Shrinkage Tester D013

Wascator Automatic Washing Shrinkage Tester, used to determine shrinkage property for various fabrics, and slack, felting, shrinkage, durability, pilling to washing for wool fabric after washing by machine.

Item No.:
D013
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
10-15 days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025
Partners:
SGS, UL, etc
Standards:
GB/T8629, FZ/T70009, ISO6330/5077, M&S P1, P1A, P3A, P12, P91, P99, P99A, P134; GB/T8630, BS EN25077/26330, IEC 456, ISO 8124-1 section 5.23

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

Wascator Automatic Washing Shrinkage Tester D013, used to determine shrinkage property for various fabrics, and slack, felting, shrinkage, durability, pilling to washing for wool fabric after washing by machine.

Standards

GB/T8629, FZ/T70009, GB/T8630

ISO6330/5077, BS EN25077/26330, IEC 456

M&S P1, P1A, P3A, P12, P91, P99, P99A, P134;

Features

Machine body adopts 304 stainless steel.
Build-in washing programs that domestic and ISO standard required, 3 sets of customized programmable procedures. Manual mode is also available. Manual mode is single step running mode. Both modes to meet various test requirements of clients.

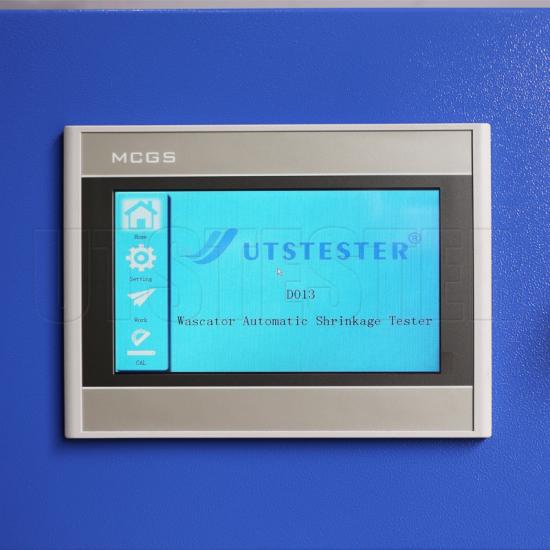

Adopt industry color color LCD touch screen, with simple interface, sensitive touch and easy operation.
Adopts 32bits cortex-m3 microprocessor, process data fast, rapid-response and reliable and stable running.
Adopts variable frequency motor and frequency converter to achieve stepless speed regulation.
Water detection adopts pressure sensor with high precision measurement without the effect of water quality.
Temperature control adopts high quality PID algorithm with fast heating speed and low control fluctuation.
Auto water in/drain, convenient for using.

Key Specifications

Model	D013
Load Weight	10kg
Inner cylinder	Diameter	(520±1)mm
	Depth	(315±1)mm
	Net volume	61L
	Lifter	3 pieces. Height: 53±1mm. Interval: 120 degree
Test Speed	Washing speed: 52±1rpm Low speed dehydration speed: 500±20 rpm High speed dehydration speed: 800±20 rpm

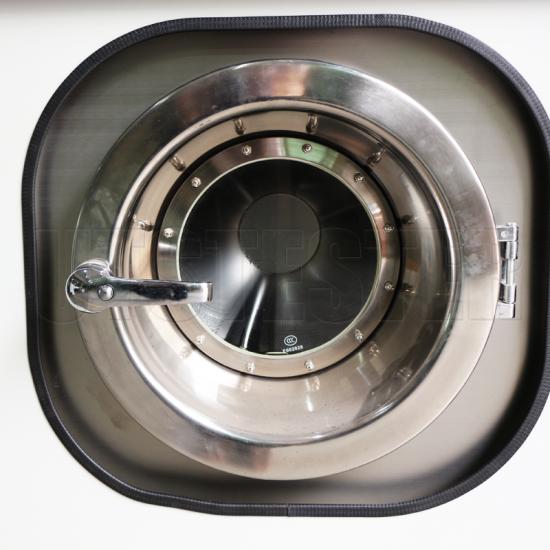

Type	front door feeding, horizontal roller
Height of inflow water level	1-20cm, error: ≦2mm, can be set
Test temperature range	RT - 99±1℃, can be set
Temperature control fluctuation	＜±1℃
Heating Power	5.4±2%KW
Rotary action	Normal rotation time interval :(12±0.1) s Normal stop time interval :(3±0.1) s Moderate rotation time interval :(8±0.1) s Interval of remission stop :(7±0.1) s Soft rotation time interval :(3±0.1) s Soft stop time interval :(12±0.1) s
Water supply system	Water supply flow: (20±2) L/min(the water supply pressure at the inlet shall be higher than 150 kP) Water level detection: 100mm and 130mm at grade 2 (tolerance ≤3 mm) Drainage rate: > 30 L/min
Washing procedure	Built-in 10 sets of GB/T 8629 procedures, 13 sets of ISO 6330 procedures;3 sets of custom procedures, 1 set of manual single program
Power Supply	AC 380V 50HZ (Three phase Five wire type) 6.5KW
Dimension	805×705×1025mm(L×W×H)
Weight	240kg

Material to be Tested

Wascator Automatic Washing Shrinkage Tester D013, is applicable for various fabrics including wool fabrics.

Wascator Automatic Washing Shrinkage Tester D013
