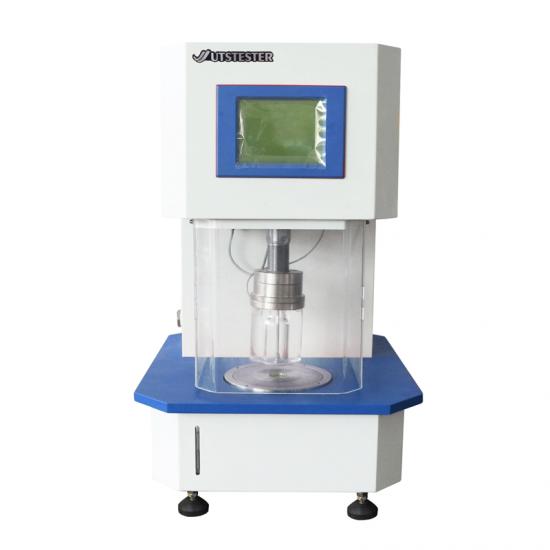

Hydraulic Bursting Strength Tester M007A

Hydraulic Bursting Strength Tester, Adopts hydraulic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.

Item No.:
M007A
Brand:
UTSTESTER
Certificates:
CE, ISO 17025, ISO 9001
Standards:
ISO 13938-1, GB / T 7742, FZ/T 60019, FZ/T 01030, BS 4768, Woolmark TM29, WSP 30.1, JIS L 1018.6.17, ASTM D 3786, etc

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

Hydraulic Bursting Strength Tester M007A, Adopts hydraulic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.

Standards

ISO 13938-1, GB / T 7742, FZ/T 60019, FZ/T 01030, BS 4768,

Woolmark TM29, WSP 30.1, JIS L 1018.6.17, ASTM D 3786, etc

Test Principle

Hydraulic Bursting Strength Tester M007A: Clamp sample on the extensible diaphragm via round sample holder. Conduct air pressure underneath diaphragm to make diaphragm and sample expand. Under constant speed and adding pressure until sample burst, so as to measure the burst strength and burst expansion.

Key Specifications

Model	M007A-1	M007A-2
Testing range	2.00 Mpa	10.00 Mpa
Minimum scale	0.001 Mpa	0.003 Mpa
Elastic membrance	≦2mm
Maximum expansion	75 +/-0.02mm
Pressurization rate	20-600 ml/min
Test methods	Constant burst, constant pressure, constant expansion, timing.
Test units	Freely switched: Kpa, atm, mmHg, lb/in2, kgf/cm²
Output mode	Print our, display and support online operation
Power supply	1 Phase AC 220V±10% 50Hz 1200W
Dimensions(L x W x H)	675mm x 440mm x 630mm
Weight	200KG

Material to be Tested

Hydraulic Bursting Strength Tester M007A, is applicable for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric

Hydraulic Bursting Strength Tester M007A
