Environmental Test Chamber E001N-408L

Environment test chamber can be used:

1. as a stand-alone test for environmental effects on test specimens

2. as preparation of test specimens for further physical tests or chemical tests.

3. as environmental conditions for conducting testing of specimens

Item No.:
E001N-408L
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
10-35 days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025
Standards:
IEC 60068-2-1;

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

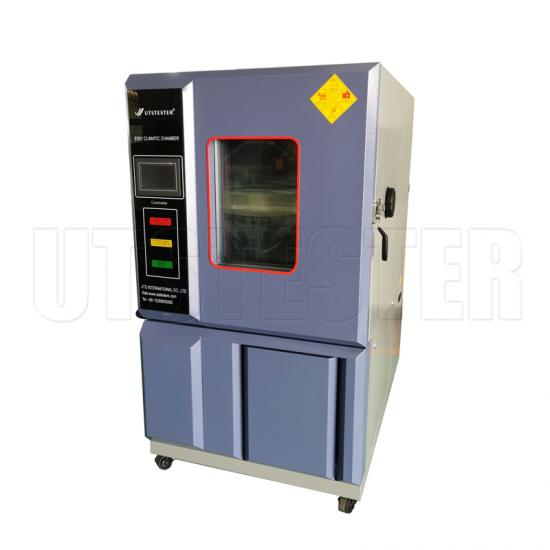

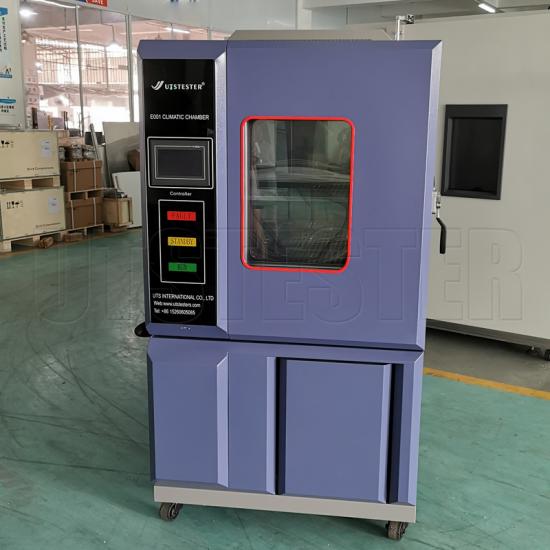

Constant temperature and humidity test chamber, also known as Temperature & Humidity Environmental Test Chambers, Humidity test chamber, programmable hot and humid alternating test chamber, constant temperature machine or constant temperature and humidity chamber, used to test the performance of materials in a variety of environments and test a variety of materials heat resistance, cold resistance, dry resistance, moisture resistance performance. Suitable for electronics, electrical appliances, cell phones, communications, instruments, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products for testing quality

UTS temperature humidity chamber available to be programmed for different temperature and humidity.

Standards

GB/T2423.2-89 High-temperature test method Bb
GB2423.1-89 Test A: Low-temperature test method 6
IEC60068-2-1 Low temperature test method Ab
GJB150.4-1986 Low temperature test
EIA-364-59 Low temperature test
IEC60068-2-38 Temperature loops
IEC60068-2-78 Constant humidity and heat
MIL-STD-202G-103B Humidity test
IEC60068-2-30 Humid heat temperature loop
EIA-364-31C Humidity resistance
GB/T2423.3 Test method for constant humidity and heat
GJB150.4-86 Military equipment environmental test method low temperature test
GJB150.3-86 Military equipment environmental test method high temperature test
GB/T2423.34-2005 Temperature and humidity combined cycle test method

Features

1. With USB download function, with RS232 interface, curved software, no need for recorder

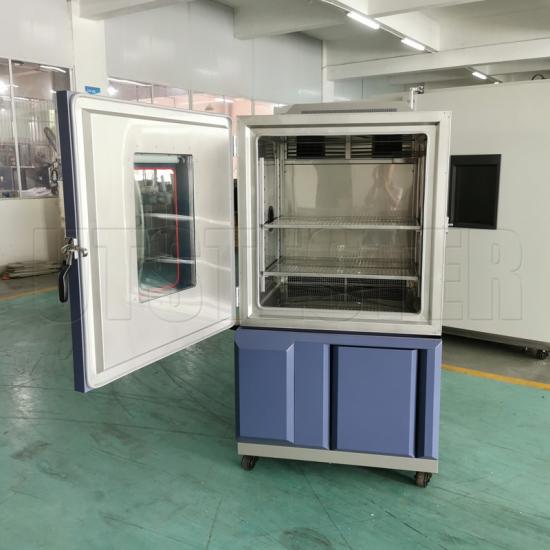

2. With vacuum glass observation window, more effective direct observation function

3. Refrigerant servo valve flow calculation control. Energy saving 30%, with a dormant function of the resident flow time, energy saving 50% or more

4. Anti-electromagnetic interference controller with SGS certification; with more than 32 numbers of soft program matching, with multiple development and software upgrade function

5. ISO-9001 quality certification (Taiwan & Dongguan & Suzhou)

6. Defrost cycle (800 defrost cycles once, each defrost guaranteed within 2 hours, integrated test to achieve 25% energy saving)

Optional Models

Model	E001-80L	E001-100L	E001-150L	E001-225L	E001-408L	E001-800L	E001-1000L
Inner box volume	80L	100L	150L	225L	408L	800L	1000L
Test chamber size (DWH) (cm)	40×40×50	40×50×50	50×50×60	50×60×75	60×80×85	80×100×100	100×100×100
Weight(kg)	180	200	250	300	550	960	1100

Key Specifications

Temperature
The temperature range	-20 ℃ ~ + 150 ℃ / -40℃ ~ + 150 ℃ / -70℃ ~ + 150 ℃
Temperature deviation	≦ ± 2.0 ℃
Temperature fluctuations	± 0.5 ℃
Temperature evenness	≦ 2.0 ℃
cooling rate	Heating rate: - 20 ℃ to + 100 ℃ about 35 min (At no-load state, environmental temperature + 25 ℃) Cooling rate: from + 20 ℃ to - 20 ℃ about 45 min (At no-load state, environmental temperature + 25 ℃)
Humidity
Humidity range	20%R.H～98%R.H
Humidity deviation	±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH）
Humidity uniformity	±3.0％RH (No load)
Humidity fluctuation	±2.0％RH
The temperature and humidity performance test is based on the relevant regulations of IEC 60068-3 standard.The sensor is placed at the outlet of the unit.

Material to be Tested

Programmable Temperature and Humidity Chamber
