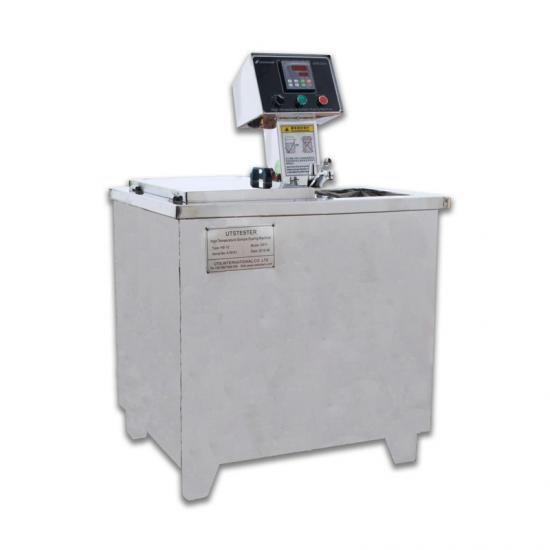

High Temperature Sample Dyeing Machine D011

To accurately simulate real producing condition including dyeing, washing and colorfastness test for apparel, dyeing and finishing, chemical industry, etc.

Equipped with new type dyeing machine special computer, precision heating system and accurate temperature and time control to improve test success rate.

Item No.:
D011
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
10-15 days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

High Temperature Sample Dyeing Machine D011, To accurately simulate real producing condition including dyeing, washing and colorfastness test for apparel, dyeing and finishing, chemical industry, etc.

High Temperature Sample Dyeing Machine D011, Equipped with new type dyeing machine special computer, precision heating system and accurate temperature and time control to improve test success rate.

Features

1. High Temperature Sample Dyeing Machine, Whole machine in stainless steel material with strong and durable, high corrosion resistance advantage.

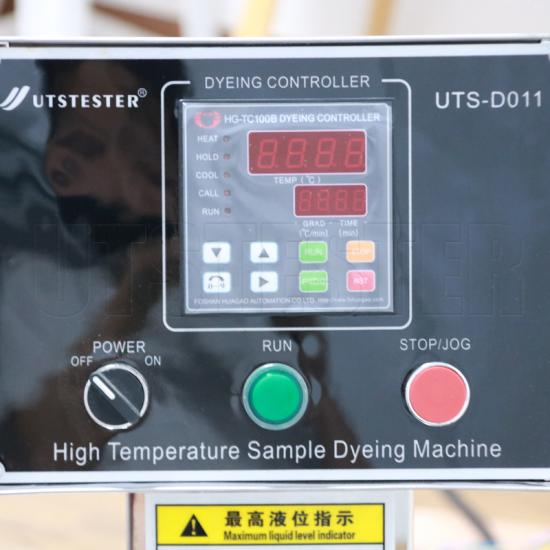

2. High performance programmable computer temperature control system, equipped with heating and cooling rate and accurate control of holding time.

3. Equipped with precision heating system, PT100 temperature control probe, available for edit and save 10 craft.

4. Drive system: Gear drive, small starting torque, smooth, light load, low noise.

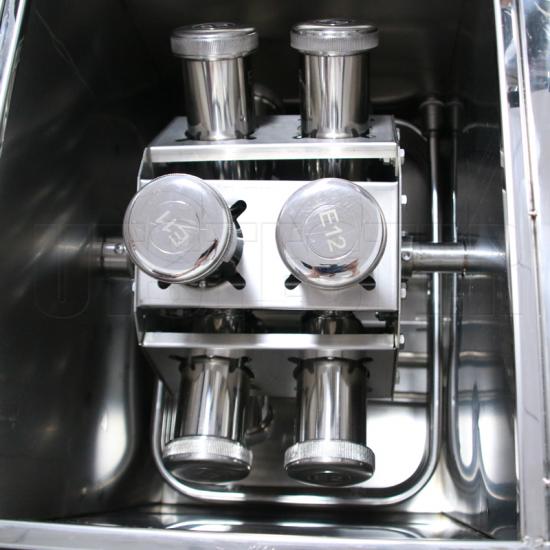

5. Dye cups: 12 or 24 pieces, capacity 150㏄, 250㏄, 300㏄, 400㏄, 450㏄, 500㏄(Optional)

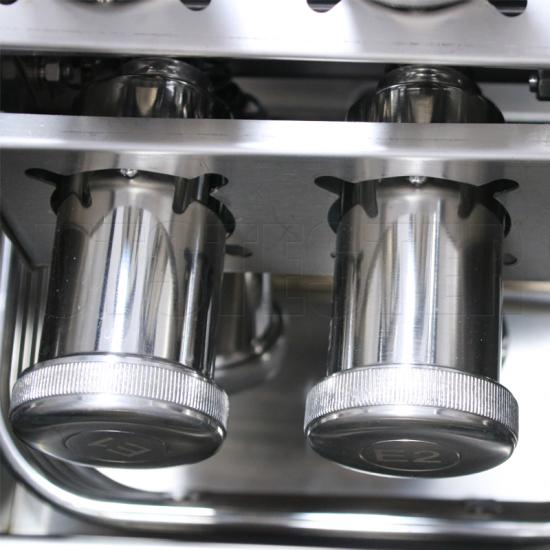

6. Beakers material: resistant to corrosion high quality SUS 316 stainless steel, seal gasket in Teflon combine with silicone rubber material, cup cage with rotary times 40 RPM.. Test cups vertically rotate with good dye uniformity.

7. Stainless steel cooling water tube, equipped with insulation cover, fast cooling and save energy.

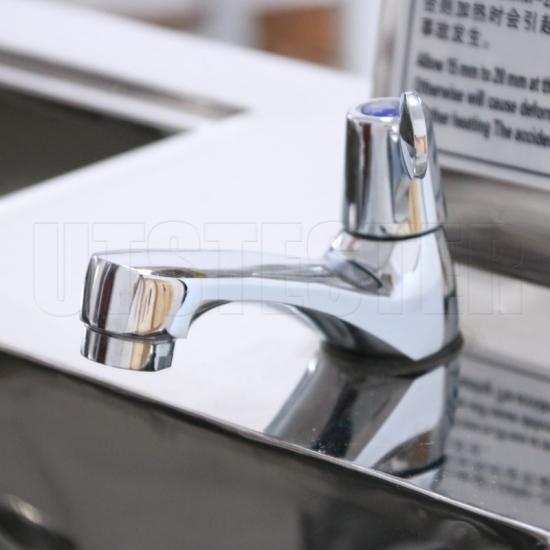

8. Equipped with flushing system to wash water bath.

9. Equipped with aluminum shell motor and reducer to reach good heat dissipation effect.

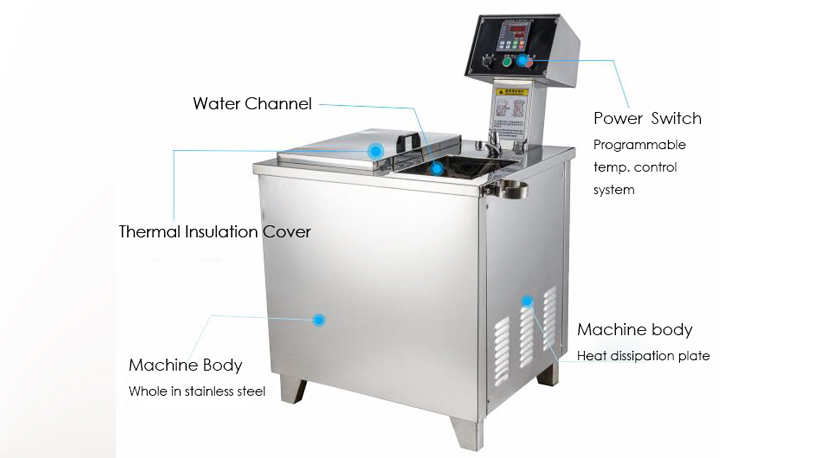

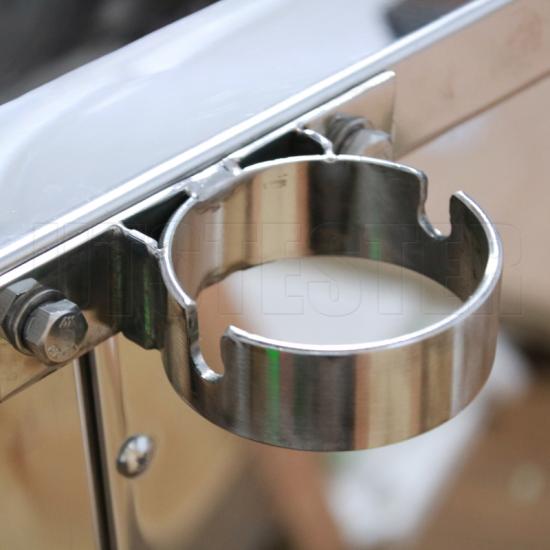

Structure

High Temperature Sample Dyeing Machine D011

Key Specifications

Model	D011A	D011B
Dyeing cups	12pcs	24pcs
Power supply	AC 380V 50/60HZ 6KW	AC 380V 50/60HZ 9.5KW
Cup volume	250ml or 450ml or 500ml (Optional)
Heating medium	Glycerinum
Cooling medium	Water
Maximum temperature	145℃
Liquor ratio	1:5-1:20
Heating mode	Electric heating

Material to be Tested

D011 High temperature sample dyeing machine , applicable for apparel, dyeing and finishing, chemical industry, etc.

Demonstration Video
