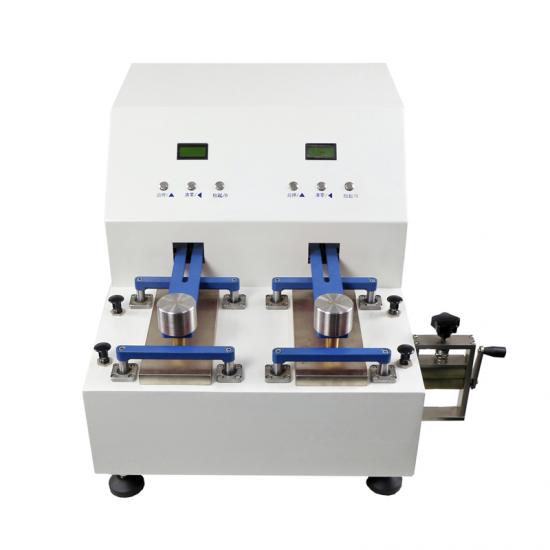

Two Position Electronic Crockmeter D004-2

Crockmeter is used to determine colourfastness to wet and dry rubbing. Apart from textiles, also available for carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces. Motorized for frequent use and long run tests, fitted with digital electronic counter with strokes up to 9999.

Item No.:
D004-2
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
10-15 days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025
Partners:
SGS, UL, etc
Standards:
BS 1006 D02 ISO 105×12/D02 AATCC 8／165 BS 4655

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

Two Position Electronic Crockmeter D004-2, is used to determine colourfastness to wet and dry rubbing.

Apart from textiles, also available for carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces.

Motorized for frequent use and long run tests, fitted with digital electronic counter with strokes up to 9999.

Standards

BS 1006 D02

ISO 105×12/D02

AATCC 8／165

BS 4655

Features

1. Linear guide rail sliding, DC motor driving, PI control algorithm speed regulation, so that the smooth operation of the instrument, low noise.
2. The operation of the instrument is stepless speed regulation, and the customer can set the speed freely according to the test requirements.
3. Users can set the required working mode according to their needs. The instrument has a variety of options:
Counting method: times count, time count;
Counting mode: add count, subtract count.
4, pneumatic clamping, clamping uniform without slipping; Pneumatic lifting of grinding head, automatic lifting of grinding head after test;Pneumatic automatic falling of grinding head;Easy to operate.
5. The instrument is independently controlled by double stations, and the working efficiency is greatly improved.

Key Specifications

Model	D004-2
Rubbing head diameter	16mm
Rubbing head stroke	104 / 100mm (Adjustable)
Vertical pressure	9N±10%
Test speed	60±2 rpm
Power supply	AC 220V 50/60HZ
Dimension	43×45×52 cm
Weight	47kg

Material to be Tested

D004-2 Crockmeter is applicable for textiles, carpets, laminates, and printing inks, as well as the micro-scratch resistance of lacquers, coatings and painted surfaces.

Two Position Electronic Crockmeter D004-2

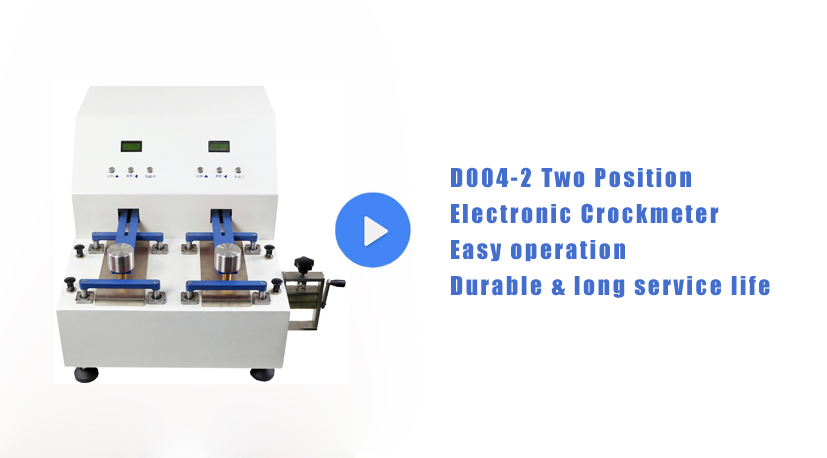

Demonstration Video

Two Position Electronic Crockmeter D004-2
