Infrared Laboratory Dyeing Machine D017

Applicable for dyeing knitted fabric, woven fabric, yarn, cotton, fibre, zipper, shoes material mesh cloth to do high temperature sample dyeing and washing fastness test. Able to accurately simulate the actual production conditions so as to reach the requested process effect .

  • Item No.:

    D017

  • Payment:

    TT, L/C

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    10-15 days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

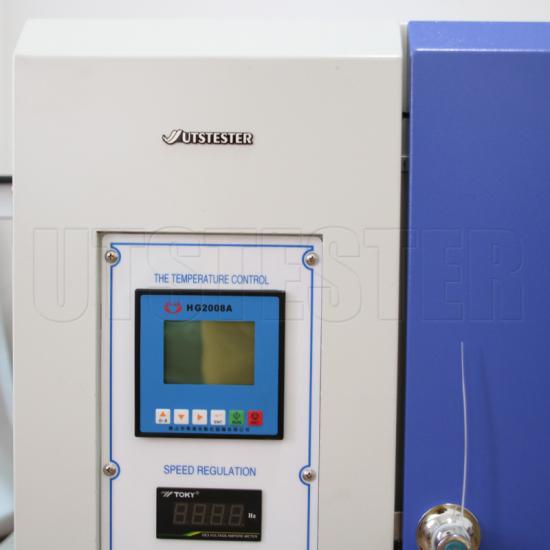

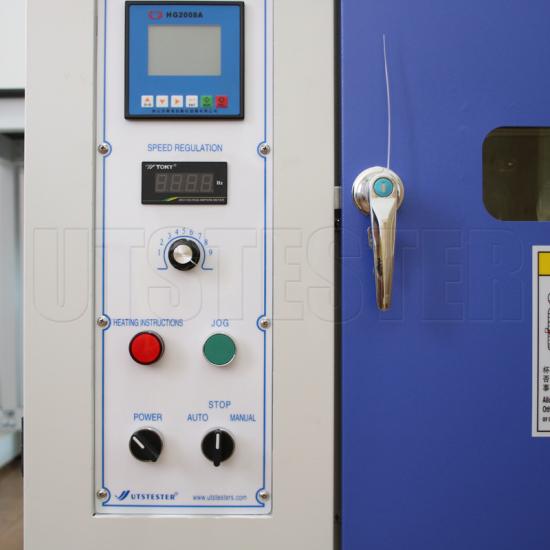

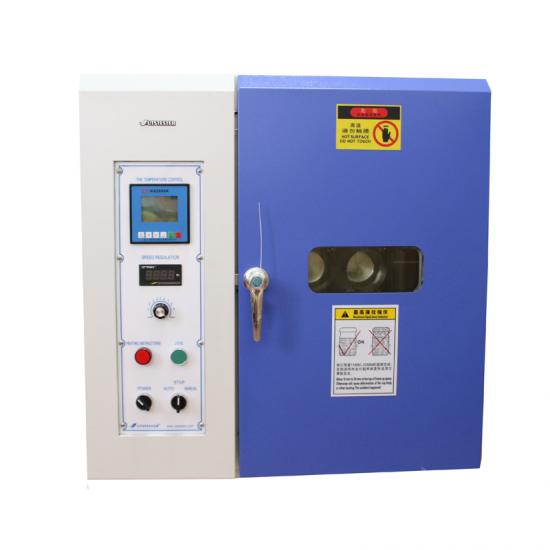

D017 Infrared Laboratory Dyeing Machine


Overview

UTS Infrared Laboratory Dyeing Machine uses heat infrared heating method to achieve dyeing effect.

Applicable for dyeing knitted fabric, woven fabric, yarn, cotton, fibre, zipper, shoes material mesh cloth to do high temperature sample dyeing and washing fastness test. Able to accurately simulate the actual production conditions so as to reach the requested process effect .

Application

1. Dye and color experiment

2. Segmented, dyeing levelness, penetration test

3. Temperature-gradient dyeing

4. Acidity, temperature, bath ratio difference against The dye absorption rate test

5. Concentration and other tests

Key Parameters

Model

D017A

D017B

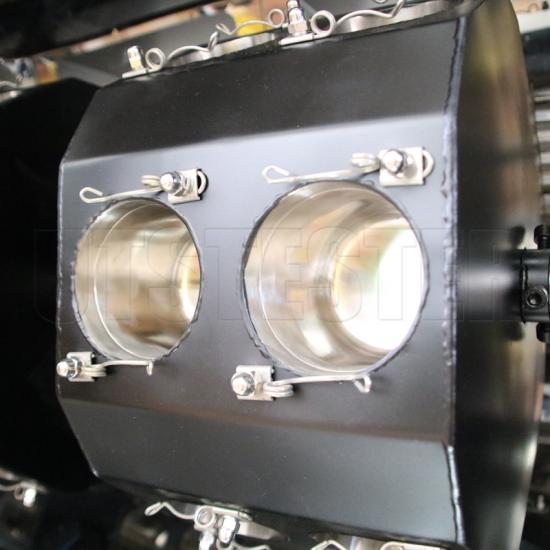

Staining cup quantity

12

24

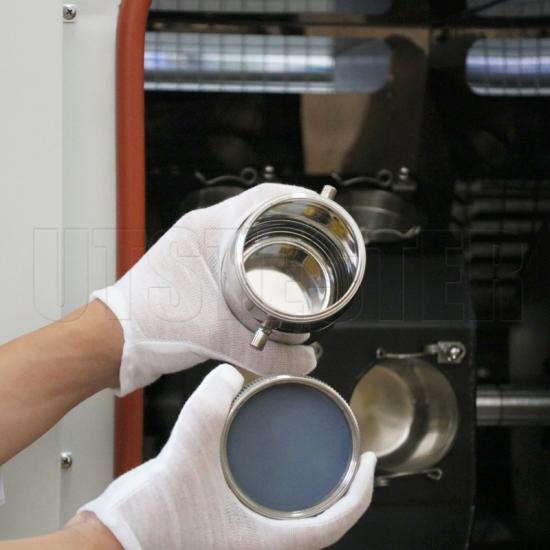

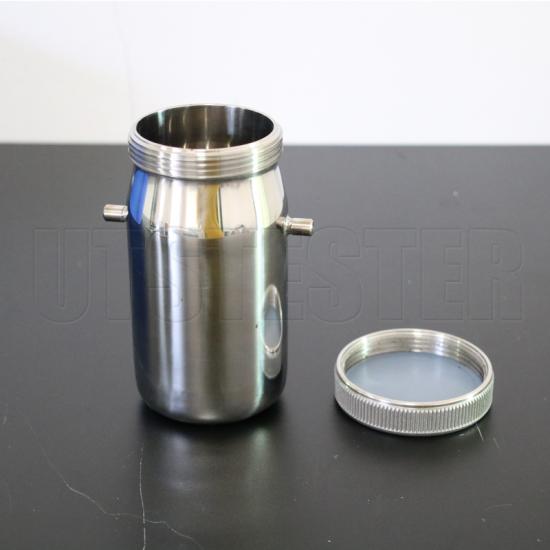

Staining cup volume

300cc , 450cc

Material

Machine shell adopts stainless steel powder spraying process.

Internal adopts SUS 304 stainless steel material.

Heat method

Infrared heat tube

Temperature range

RT - 140 ℃

Temperature control accuracy

±0.1 ℃

Heating/Cooling rate

0.1 - 9.9 ℃ / min

Cooling method

Air-cooled

Rotation speed

0 - 60 rpm

Liquor ratio

1:5 -1:30

Infrared heat tube

No direct heat dye cups, Machine heat conduction oil to avoid temperature difference between cups.

eletronic component

Siemens, Schneider

Power consumption

6KW

6.5KW

Heating power of single-side nano-coated infrared lamp tube

6 units, 1KW/unit,

2pcs connection in series,

4.8KW

6 units, 1.2KW/unit,

2pcs connection in series,

5.4KW

Power supply

AC 380V 50/60HZ

Dimensions( L x W x H)

700×750×750mm

800×750×750mm

Weight

120kg

136kg

Materials To Be Tested

D017 Infrared Laboratory Dyeing Machine is applicable for dyeing knitted fabric, woven fabric, yarn, cotton, fibre, zipper, shoes material mesh cloth.
