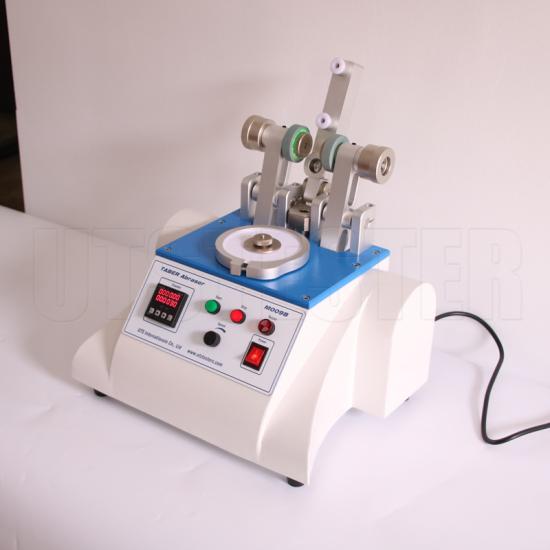

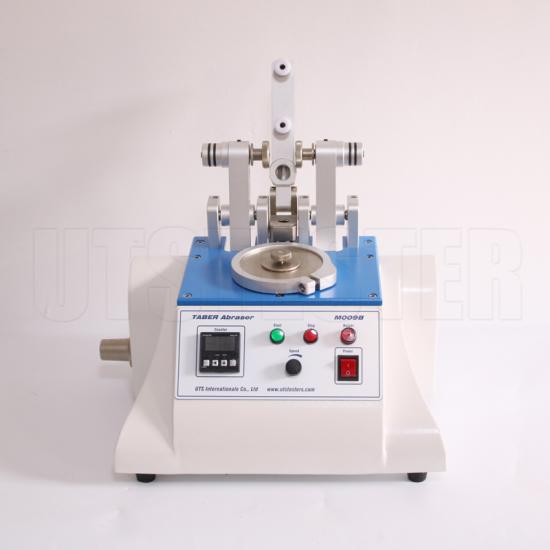

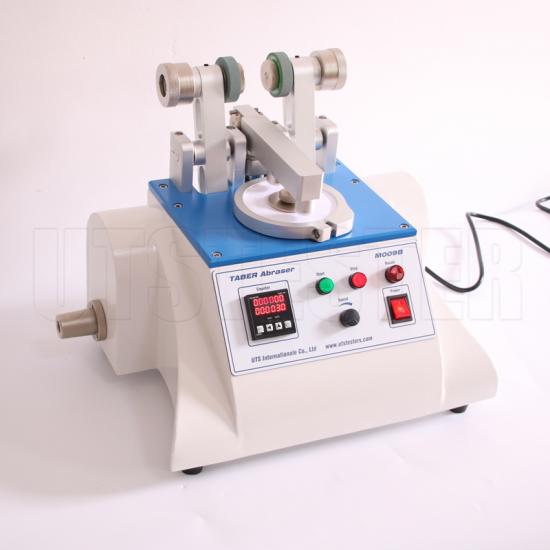

Taber Abraser M009B-1

M009B-1 Taber Abraser, To determine the wear resistance(including mass loss, thickness loss, and transmittance etc.) of all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber.

Wear sample via a couple of abrasive wheels with adding the specified load. Sample rotates and simultaneously drive abrasive wheels so as to wear test sample.

Item No.:
M009B-1
Brand:
UTSTESTER
Certificates:
CE, ISO 17025, ISO 9001
Partners:
SGS, UL
Standards:
ISO 7784-2, ISO 9352, ISO 5470-1, ASTM D3884, ASTM D4685, ASTM D1175, ASTM D1044, ASTM D4060, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, TAPPI T476, ANSI INCITS 332, QC/T 236, GB/T 1768

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

Taber Abraser M009B-1, To determine the wear resistance(including mass loss, thickness loss, and transmittance etc.) of all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber.

Standards

ISO 7784-2, ISO 9352, ISO 5470-1, ASTM D3884, ASTM D4685, ASTM D1175, ASTM D1044, ASTM D4060, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, TAPPI T476, ANSI INCITS 332, QC/T 236, GB/T 1768

Test Principle

Taber Abraser M009B-1: Wear sample via a couple of abrasive wheels with adding the specified load. Sample rotates and simultaneously drive abrasive wheels so as to wear test sample.

Key Specifications

Model	M009B-1		M009B-2
Test position	1		2

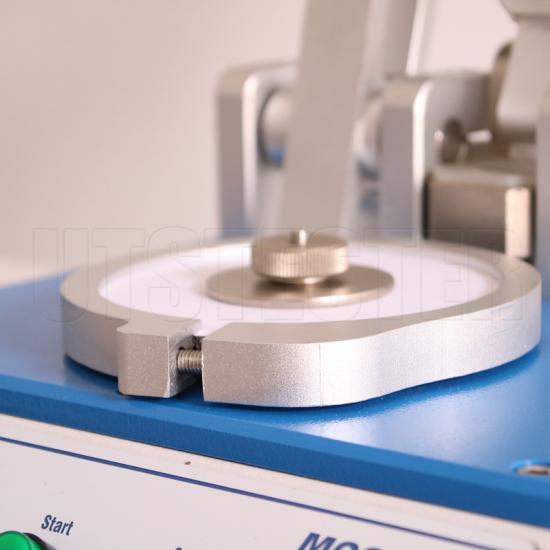

Sample	External diameter: 120mm; Inner diameter: 6.5mm; Thickness: 3mm

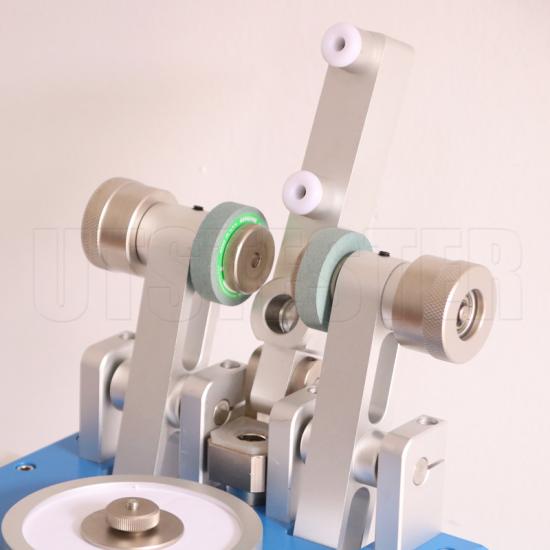

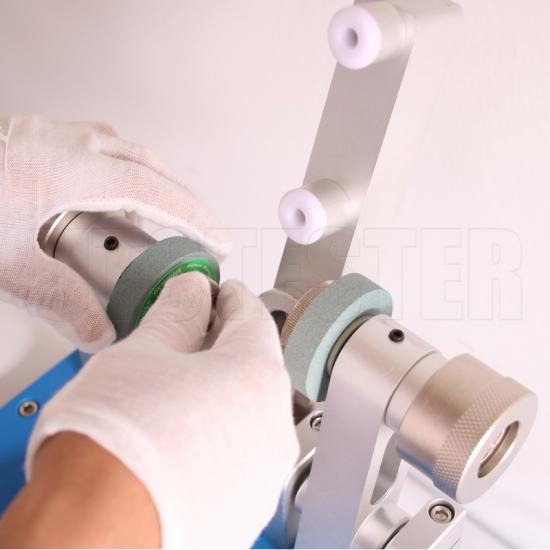

Abrasive wheel	Φ2"(max 45mm) (W)1/2"
Abrasive wheel central interval	63.5mm
Abrasive wheel and sample plate central interval	37mm~38mm
Rotate speed	70r.p.m.
Load	250g 500g 1000g
Counter	LCD, 0-999,999
Power supply	1∮ AC220V 50Hz 5A
Dimensions ( L x W x H )	53cm x 32cm x 31cm	60×38cm ×28cm
Weight	18kg	30kg

Material to be Tested

Taber Abraser M009B-1, is applicable for all kinds of structures including textiles, paper, glass, metals, paints, plated surfaces, coated materials, leather and rubber.

Taber Abraser M009B-1
