Rotary Tumble Dryer D014B

To rotary tumble dry textile, apparel or other fabrics after shrinkage test.

  • Item No.:

    D014B

  • Payment:

    TT, L/C

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    10-15 days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

  • Standards:

    GB/T8629 ISO 6330

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

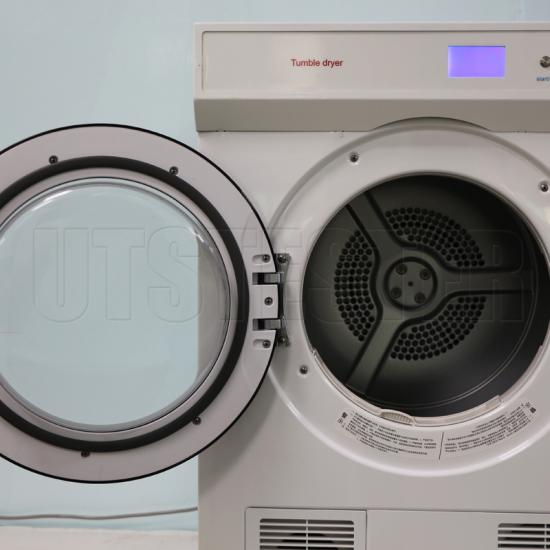

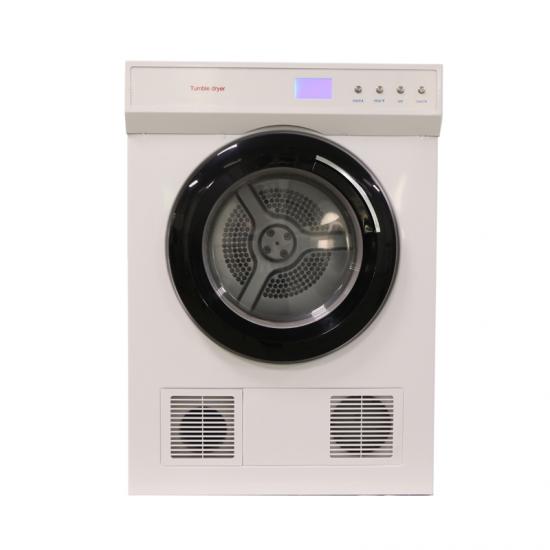

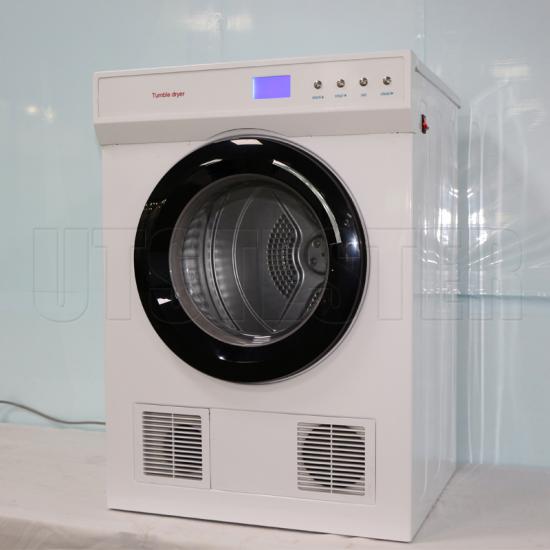

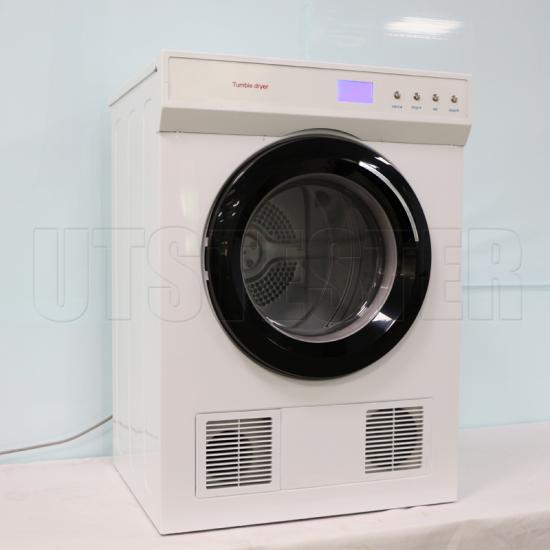

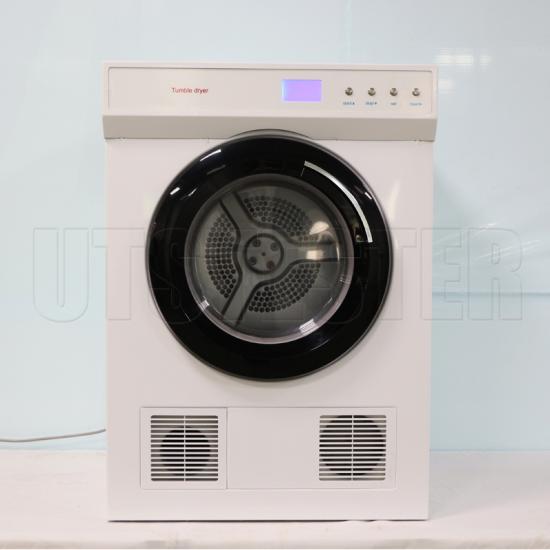

D014B Rotary Tumble Dryer



Overview

To rotary tumble dry textile, apparel or other fabrics after shrinkage test.


Features

1. The shell is made of high-quality steel by plastic spraying process, and adopts stainless steel as the roller. The appearance design is novel and beautiful.

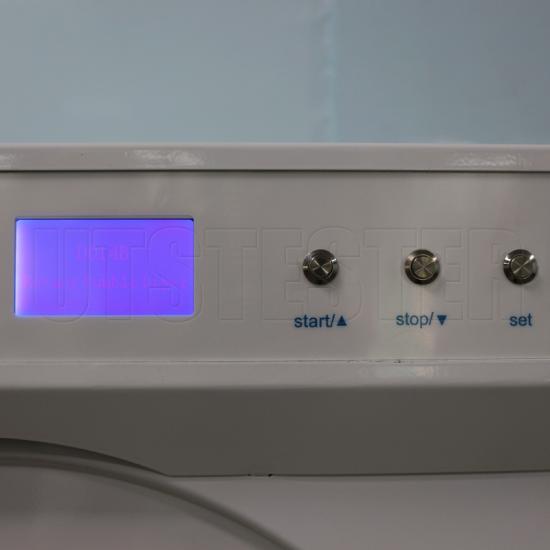

2, Microcomputer control reasonable drying temperature and equipped with automatic drying into cold air cooling function before the end.

3. Digital circuit, hardware control, strong anti-interference ability.

4. The instrument features low noise, stable and safe operation, and external door opening and self-stop safety device, convenient and reliable to use.

5, Drying time can be freely selected, drying fabric materials and a wide range of quantities.


Standards

GB/T 8629  ISO 6330



Key Specifications

Model

D014B

Roller diameter

(580±10)mm

Roller volume

100L

Roller capacity

6kg

Roller rotary speed

50 r/min  25r/min

Lifter quantity

3 pieces ( Each piece distance 120°)

Air outlet temperature

＜70℃

Power

Ac 220V   50Hz   3KW

Dimension

595×580×860mm

Weight

38Kg



Material to be Tested


D014B Rotary Tumble Dryer,  is applicable for textile, apparel or other fabrics.
