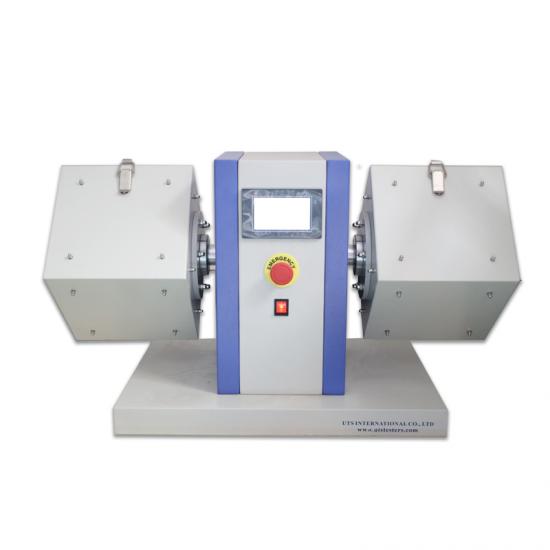

ICI Pilling Tester M010A

M010 ICI Pilling Tester is used to assess surface pilling degree for fabrics particularly wool knitted fabric.

The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.

Item No.:
M010
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
3-25 Days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025, ISO 9001
Partners:
BV, SGS, UL
Standards:
GB/T4802.3, ISO 12945.1, BS5811, JIS L1076, IWS TM152

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

M010 ICI Pilling Tester is used to assess surface pilling degree for fabrics particularly wool knitted fabric.
The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.

Standards

GB/T 4802.3, ISO 12945.1, BS 5811, JIS L1076, IWS TM152

Features

• Three modes available with 2, 4, 9 pilling boxes.

• Drives can operate different boxes and drums simultaneously.

• Snagging points can be mounted in the pilling boxes - no need for different boxes

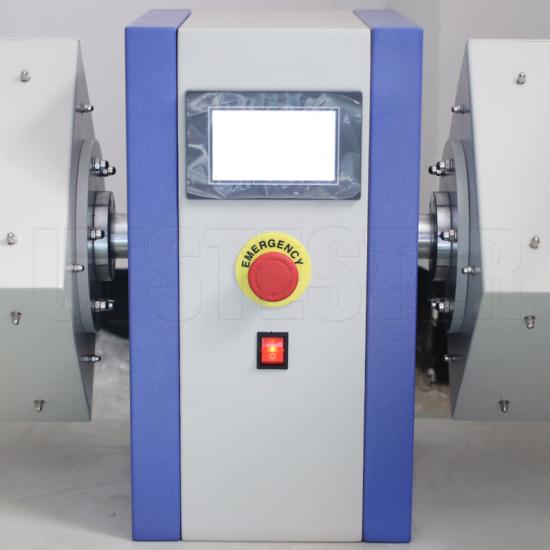

• Touch screen controller has standard tests preloaded.

• Count down timer lets operator know when test will finish

• Cork liners held by magnets for easy changing – no need to remove boxes.

Key Specifications

Model	M010A	M010B	M010C
Pilling boxes quantity	2 Boxes	4 Boxes	9 Boxes
Interior box size	235×235×235mm
Rotational speed	30-70 rpm, adjustable
Rotational direction	Positive and negative rotation, optional
Counter range	1-99999 times
Polyurethane sample tubes	External: Φ31.5×140 mm 4 Pieces per box
Power supply	AC 220V 50/60HZ 120W
Dimensions (L x W x H)	1200x 500x 500 mm	1200x 500x 800mm	1400x500x1600mm
Weight	40kg	60kg	180kg

Material to be Tested

M010 ICI Pilling Tester, is applicable for testing fabrics particularly wool knitted fabric.
