martindale abrasion and pilling tester martindale abrasion and pilling tester martindale abrasion and pilling tester martindale abrasion and pilling tester martindale abrasion and pilling tester martindale abrasion and pilling tester martindale abrasion and pilling tester

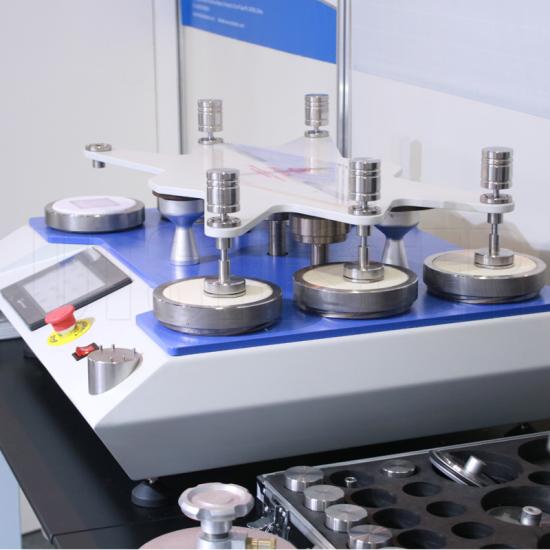

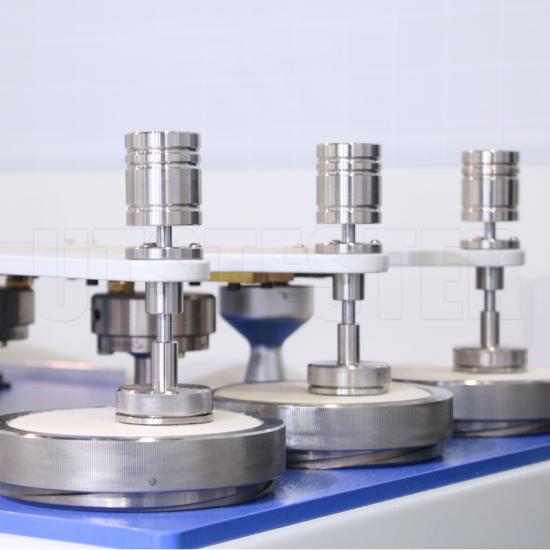

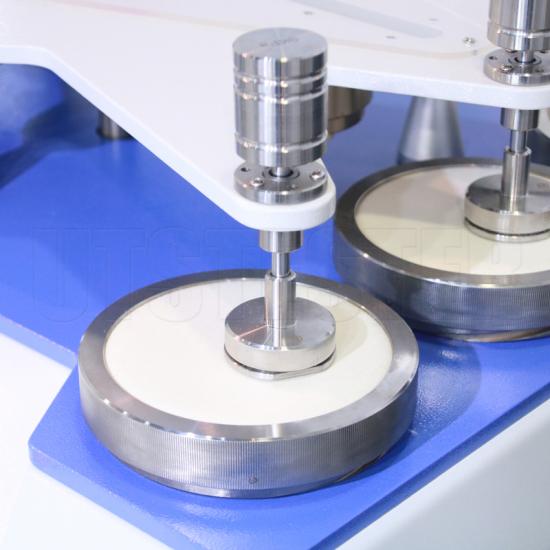

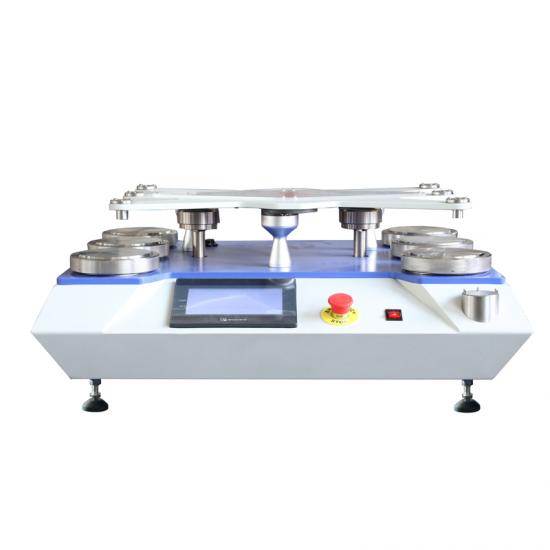

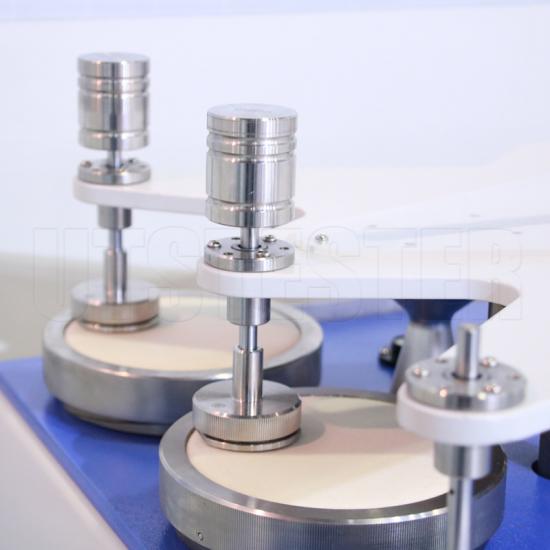

Martinedale Abrasion and Pilling Tester M008A-6

The Martindale is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use.
4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.

  • Item No.:

    M008A-6

  • Payment:

    TT, L/C, Wester Union

  • Product origin:

    China

  • Shipping port:

    China Port

  • Lead Time:

    10-15 days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025

  • Partners:

    SGS, UL, etc

  • Standards:

    ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

Martinedale Abrasion and Pilling Tester M008A-6


Demonstration Video


Overview

Martinedale Abrasion and Pilling Tester M008A-6 is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use.

4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.

Standards

Abrasion:

ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775


Pilling:

 ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525,GB/T 4802.2.

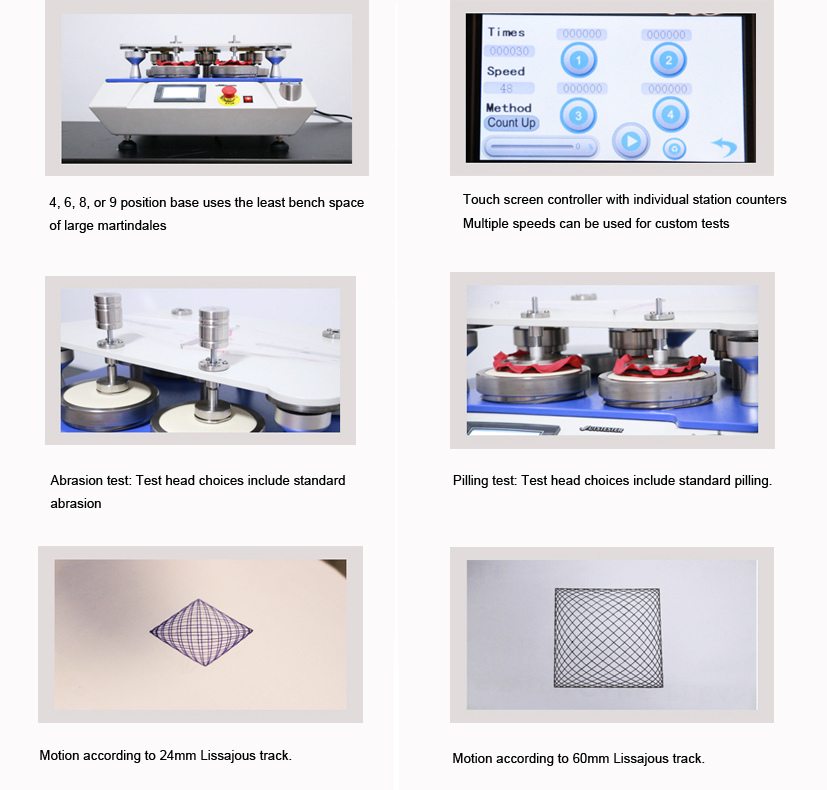

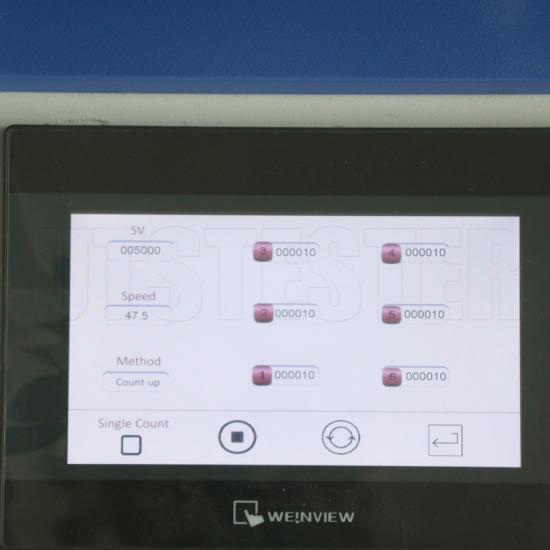

Features

Martinedale Abrasion and Pilling Tester M008A-6

Key Parameters

Model

M008A-4

M008A-6

M008A-8

M008A-9

Working positions

4

6

8

9

Counting range

0~999999 times

Test load

Abrasion test

Sample holder: (198 ±2)g

Load for Funishings: (597±5)g





Sample holder: (198 ±2)g

Load for Garment material: (397±5)g



Pilling test

Stainless steel load: (155 ± 1) g

Stainless steel disc: (260 ± 1)g

Effective friction diameter of grinding block

A) Abrasion Holder : Φ(28.65 ± 0.05)mm



B) Pilling Holder : Φ(90 ± 0.10)mm

Rotational speed

47.5±2.5r/min(20-70 r/min adjustable)

Weight of loading hammer

2.5kg±0.5kg

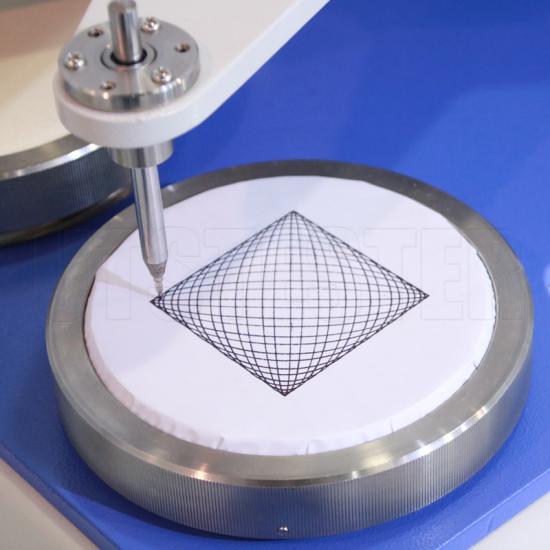

Rubbing/pilling stroke

60 ±0.5mm



24 ±0.5mm

Power supply

1Phase AC 220V 50/60Hz  500W

Dimensions(L x W x H)(cm)

60×55×33

78×62×33

78×62×33

78×62×33

Weight(kg)

77

107

120

130


Material to be Tested

Martinedale Abrasion and Pilling Tester M008A-6
