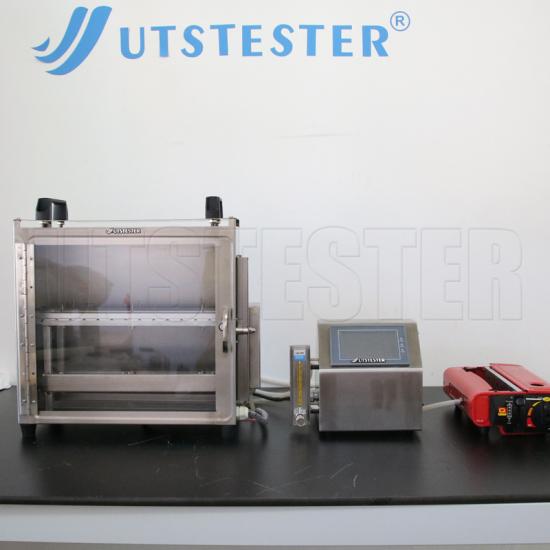

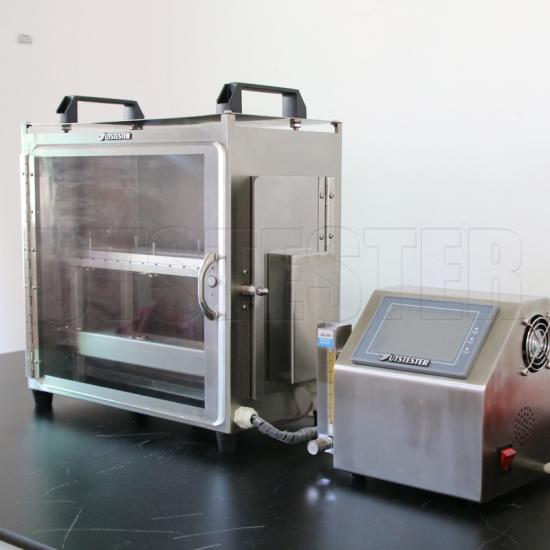

Horizontal Flammability Tester M016A

To determine the horizontal burn rates and burn resistance of textiles, particularly those for automotive interior use. It is the flammability test about the required time which flame spreads at horizontal direction to the specified distance.

Item No.:
M016A
Payment:
TT, L/C, Wester Union
Product origin:
China
Shipping port:
China Port
Lead Time:
3-25 Days
Brand:
UTSTESTER
Certificates:
CE, ISO 17025, ISO 9001
Partners:
SGS, BV, UL
Standards:
TL 1010, DIN 75200, ISO 3795 , JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW3232, ASTM D5132, FAR 25.853, etc

Contact now

Product categories

New Products

Call Us Now

+86 15260605085

Product details

Overview

Horizontal Flammability Tester M016A, To determine the horizontal burn rates and burn resistance of textiles, particularly those for automotive interior use. It is the flammability test about the required time which flame spreads at horizontal direction to the specified distance.

Standards

TL 1010, DIN 75200, ISO 3795 , JIS D1201, FZ/T 01028, GB 8410, GB/T 20953,

FMVSS 302, SAE J369, GMW3232, ASTM D5132, FAR 25.853

Test Principle

Horizontally clamp sample on the U shape holder, ignite free end of sample with specified height of flame inside test chamber for 15 seconds, check whether the flame on sample has distinguished or not, and when the flame distinguished and burning distance of sample and the needed burning time to get this distance.

Features

1. Machine in 1.5mm imported brushed stainless steel material with the advantages of resistance to heat & smoke erosion and easy for cleaning.

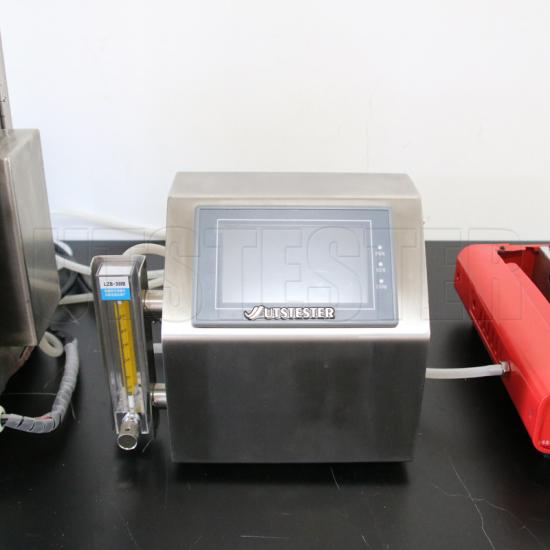

2. Large color touch screen display.

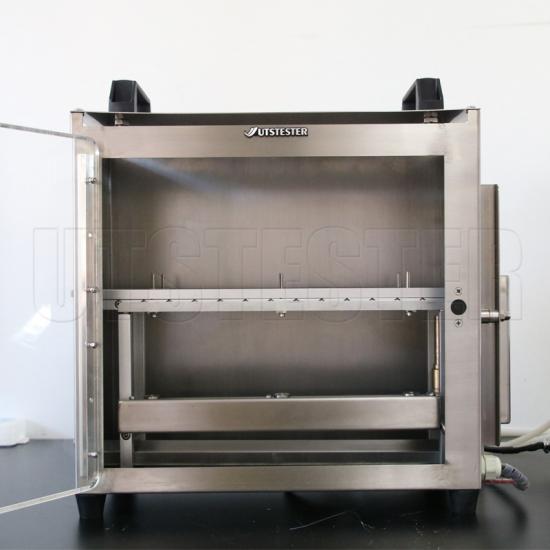

3. Heat resistance observation door in front of test chamber is easy to control for operator.
4.Control panel adopts special aluminum processed and equipped with metal button, beautiful and no easy to break.

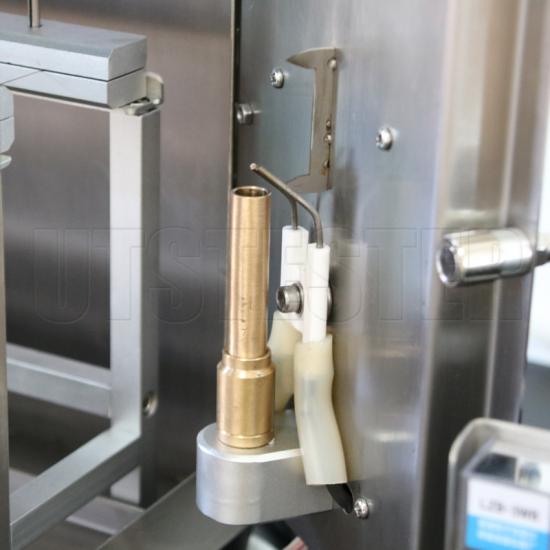

5. Nozzle adopts B63 materials, Corrosion resistance, without deformation and rust.
6. Adjustment for height of flame adopts precision rotor flow meter control, flame is stable and easy to be adjusted.

Key Specifications

Model	M016A

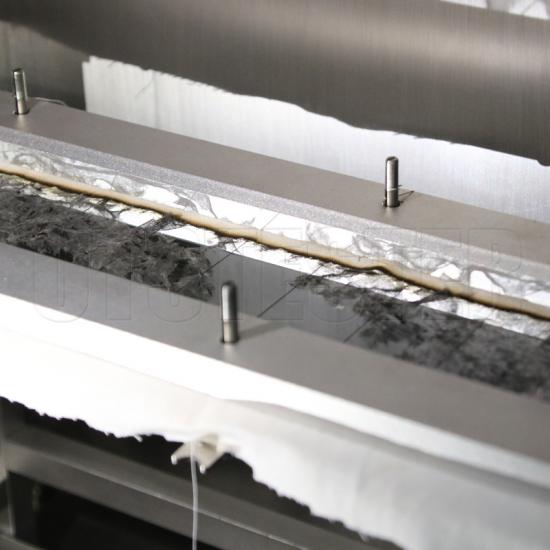

Sample holder	U-shaped External frame: 360 x 100mm Internal frame: 330 x 50mm
Sample	356 x 100mm, thickness no more than 13mm
Internal chamber temperature	Rt to 99℃
Sample quantity	At least 5 pcs
Distance between top of igniter to sample surface	19mm
Spread time	99999.99S, Resolution: 0.01S
Nozzle pipe orifice	Inner diameter 9.5mm
Nozzle angle	Vertical
Burning flame height	38mm
Flame burning time	15s
Tag line distance	254mm
Burning gas	Natural gas, coal gas or butane
Power supply	1∮ AC 220V 50/60HZ 50W
Dimensions	460×360×570mm (L x W x H)
Weight	22kg

Material to be Tested

Horizontal Flammability Tester M016, is applicable for textiles, particularly those for automotive interior use.

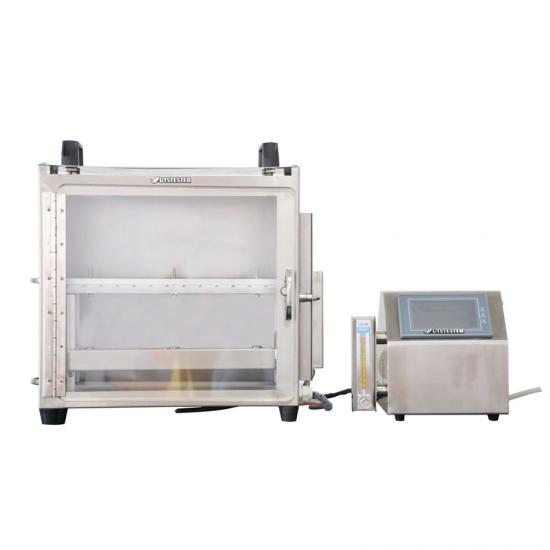

Horizontal Flammability Tester M016A
