Yarn Twist Tester Yarn Twist Tester

Electronic Yarn Twist Tester Y004C

This product is an ideal instrument for measuring the twist of yarn and its related technical indicators, in line with GB/T2543.1, GB/T2543.2, FZ/T10001, FZ/T01092 and other standards.

  • Item No.:

    Y004C

  • Payment:

    TT, L/C, Wester Union

  • Product origin:

    MADE IN CHINA

  • Shipping port:

    Any Port of China

  • Lead Time:

    7-15 Days

  • Brand:

    UTSTESTER

  • Certificates:

    CE, ISO 17025 Calibration Certificate

  • Standards:

    GB/T2543.1 GB/T2543.2 ISO 2061 17202 BS 2085 ASTM D1422 ,1423

Product categories

New Products

Call Us Now

+86 15260605085

  • Product details

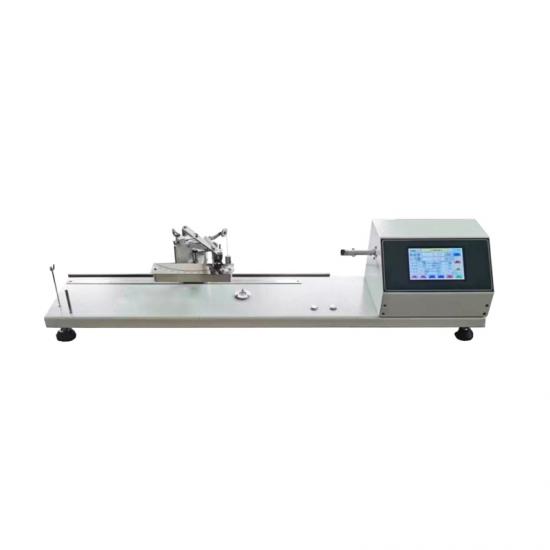

Y004C Electronic Yarn Twist Tester


Overview

The yarn twist meter is an instrument for measuring the twist of yarn and its related technical indicators. It can measure the twist and twist unevenness of various yarns, and is one of the main test instruments for evaluating the quality of yarn products. The twisting direction and coefficient of the dismantled fabric can be analyzed by testing the structure of some fabrics, so that the weaving can be carried out according to the fabric disassembly process. Through the tension mechanism of the yarn twist meter, the weave shrinkage ratio and linear density of the dismantled woven fabric can be analyzed.

Standards

GB/T2543.1 GB/T2543.2 ISO 2061 17202 BS 2085 ASTM D1422 ,1423


Key Specifications

Model

Y004C

Application

All kinds of yarn

Yarn tension

There is a set of weights can be adjusted according to the type of yarn.

Chuck speed

50r/min ~ 2000r/min continuous adjustable.

Test length

10 ~ 600mm arbitrary setting.

Test quantity

No more than 99 times.

Test method

a. Direct counting method;

b. One-time untwisting and twisting method;

c. Double untwisting and twisting method;

d. Three times untwisting and twisting method;

Test data output mode

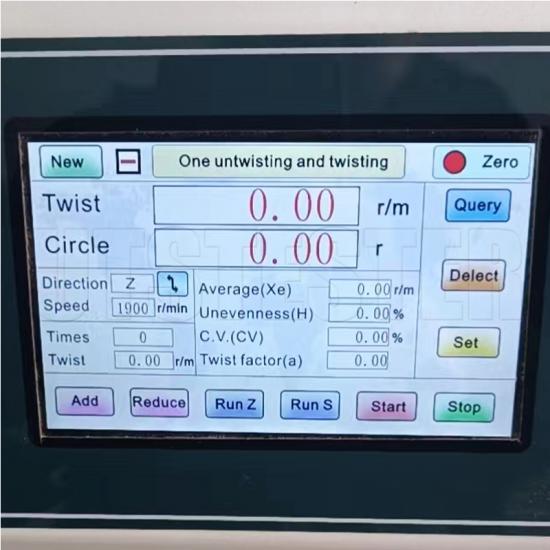

A. Display output: The touch screen of this machine can display the number of tests, single twist value and twist coefficient.

B. Print output: this machine can be connected to the printer.

power supply

AC 220V±10%, 50Hz.

Power

20W

Environmental requirements

Temperature 20℃±10℃

Dimensions

1080×275×216mm (L x W x H)

Weight

29kg


Features

1, Using microcomputer control, automatic data processing, display and can be printed out, its characteristics are accurate, stable, reliable, can correctly reflect the yarn related technical indicators.

2, The yarn holder is directly driven by the motor to rotate, can be stepless speed regulation, and the design has the function of speed measurement, the speed of the yarn holder (motor) can be accurately measured.

3, The CPU can automatically judge the rotation direction of the yarn holder, and automatically process the count, its indexing value is 1/10 twist.

Material to be Tested

Y004C Electronic Yarn Twist Tester  is applicable for all types of yarns.
