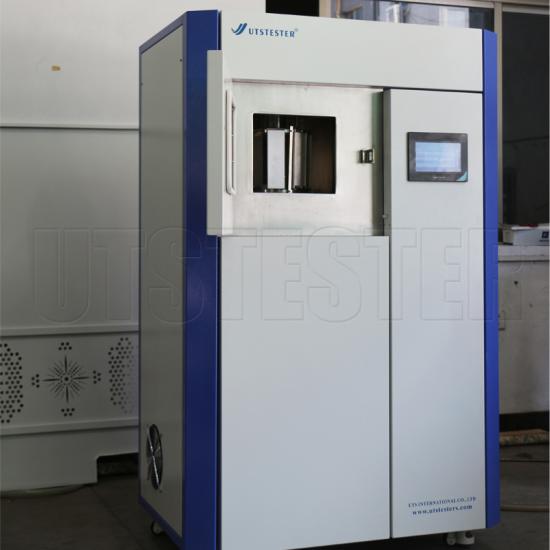

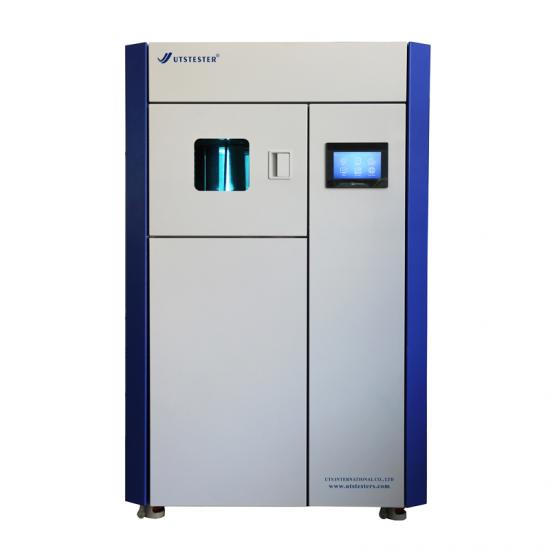

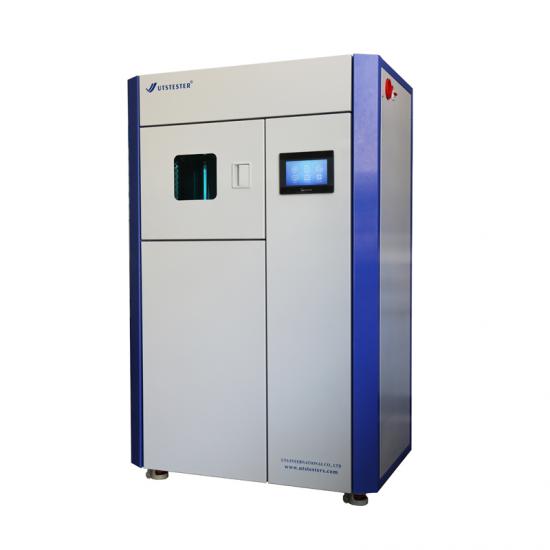

D002A-3 Light Fastness Tester
Overview
To do color fastness to light and weather test in the color fastness test. Also available for coatings, paper, paint, paint, rubber, plastic, wood, etc.
Standards
|
ISO105-B02, ISO105-B04, AATCC TM16
GB/T8430, GB/T 8427, GB/T14576
GB/T15102-2006, GB/T15104-2006
|
Features
1. A 2500W long arc xenon lamp is used to simulate the real daylight spectrum.
2. The combination of high transmittance filter, using 95% transmittance filter and filter barrel, can meet the light requirements of the same irradiance with low power consumption, making the instrument more energy saving and environmental protection.
3. Standard 420nm band, digital setting of irradiance, real-time monitoring, closed loop automatic regulation, providing the most stable test light source of irradiance for different standards (optional: 340nm, 420nm, 300-400nm and 300-800nm band).
4. The radiometer detection and wireless transmission adopt the light energy conversion technology to provide energy without the need of additional power supply.
5. Blackboard thermometer (BPT), standard blackboard thermometer (BST), irradiometer and sample are tested at the same station (equidistant) to truly reflect the test sample, and the measured data are transmitted synchronously by radio frequency technology.
6. In industrial temperature control (refrigeration) system, water tank is heated to produce water vapor to control the humidification system, and the temperature and humidity in the test chamber can be rapidly adjusted to ensure the accuracy and stability of the test temperature and humidity.
Key Specifications
|
Model
|
D002A-3
|
|
Test chamber temperature range
|
Standard configuration: 25 ~ 55 ℃;Resolution: 0.1 ℃
Optional configuration: 25~65 ℃
|
|
Test chamber humidity range
|
Light cycle: 10 ~ 70RH%;Resolution: 0.1RH%
Dark cycle: 30 ~ 95RH%;Resolution: 0.1RH%
|
|
Irradiance Monitoring system
|
Efficient radiometer for irradiance monitor
|
|
BST (Black Standard Thermometer).
|
40～85℃.Accuracy: ± 1 ℃;Resolution: 0.1 ℃
|
|
BPT (black panel thermometer) (optional)
|
(40 ~ 80 ℃;Accuracy: ± 2 ℃;Resolution: 0.1 ℃
|
|
Test time control range
|
≤ 10000h
|
|
Irradiance control range
|
0.80 ~ 1.20W/m squared @420nm;(optional: 340nm, 420nm, 300-400nm or 280-800nm), accuracy: ±0.02W/m²@420nm;
Digital setting, closed loop automatic compensation;
|
|
Rated power of xenon arc lamp
|
2500W
|
|

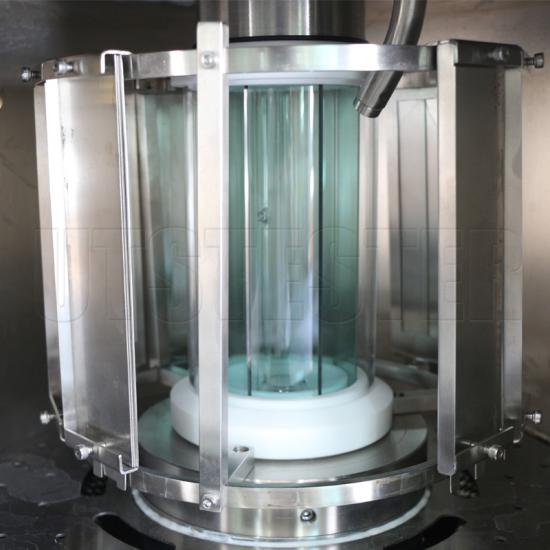

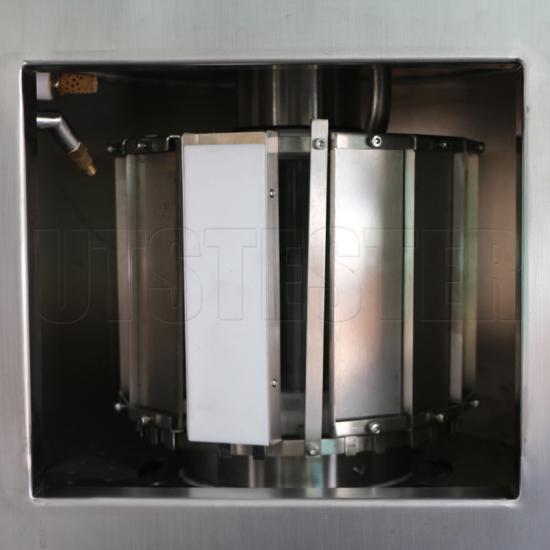

Sample frame rotation speed
|
2-7rpm
|
|
Maximum number of samples to be installed
|
International standard: 12 pieces;
American standard 6 pieces
|
|
Each sample clip separately timing
|
≤10000h
|
|
Light cycle
|
≤1000h
|
|
Spray cycle
|
≤1000h
|
|
Power
|
AC220V ±10% 50Hz 6.5kw, rated power: 3.3kw
|
|
Dimension
|
920×650×1680mm
|
|
Weight
|
180kg
|
Accessory
|
Item
|
Name
|
Model
|
Qty.
|
Unit
|
Remark
|
|
1
|
Main board
|
D002A-3
|
1
|
Set
|
|
|
2
|
Xenon lamp
|
2500W
|
2
|
units
|
1 for spare
|
|
3
|

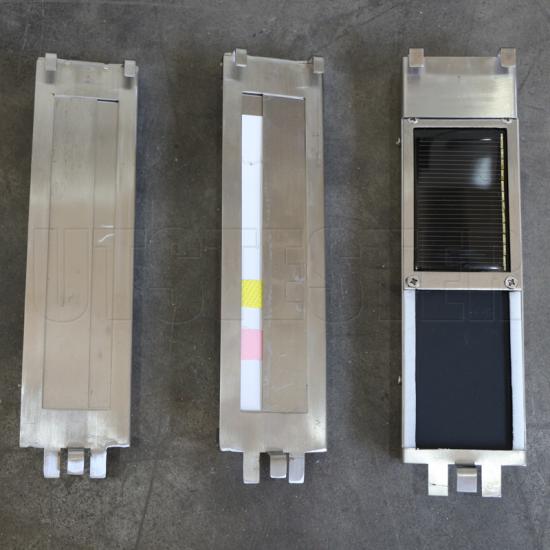

45mm GB sample holder
|
145×45mm(GB)
|
12
|
pcs
|
|
|
4
|
45 mm cover plate
|
|
24
|
pcs
|
12 pcs for each 1/2&1/3
|
|
5
|
70 mm American standard sample holder
|
145×70mm(ASTM)
|
6
|
pcs
|
Order additionally
|
|
6
|
70 mm cover plate
|
|
12
|
pcs
|
|
7
|
The sample board
|
|
60
|
pcs
|
|
|
8
|
Lamp mounting seal ring
|
|
1
|
set
|
Mounted on machine
|
|
9
|
Xenon lamp air-cooled holder
|
|
1
|
set
|
|
10
|
Xenon arc lamp
|
|
2
|
unit
|
|
|
11
|
Standard blackboard thermometer
|
|
1
|
pc
|
Internal irradiometer mounted on machine
|
|
12
|

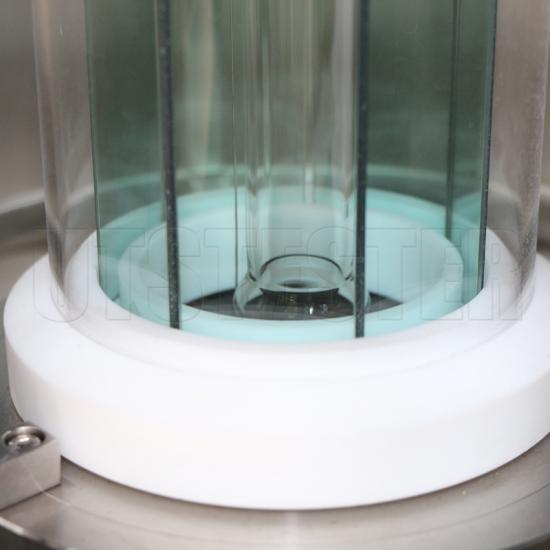

Filter glass cylinder
|
|
2
|
pcs
|
1 for spare
|
|
13
|
filter
|
|
14
|
pcs
|
7 for spare
|
|
14
|
Solar panel
|
|
1
|
pc
|
Spare
|
|
15
|
Blue wool sample scale
|
|
1
|
set
|
|
|
16
|
Color sample card
|
|
1
|
set
|
|
|
17
|
Ceramic chip
|
|
2
|
pcs
|
An oscillating sheet for a humidifier
|
|
18
|
PP cotton
|
|
2
|
pcs
|
1 for spare
|
|
19
|
Inner hexagon wrench
|
|
1
|
pc
|
|
|
20
|
Insurance risk tube
|
|
2
|
pcs
|
5A
|
|
21
|
Drainage inlet pipe
|
|
1
|
set
|
|
Material to be Tested
D002A-3 Light Fastness Tester, is applicable for coatings, paper, paint, paint, rubber, plastic, wood, etc.
